Visual Studio Environment Configuration
Introduction
This document mainly introduces the initial configuration for your UWP project when you need to integrate MG Ads SDK.
Package.appxmanifest Settings
You need to ensure the following capabilities:
- Internet (Client)
- Private Networks (Client & Server)

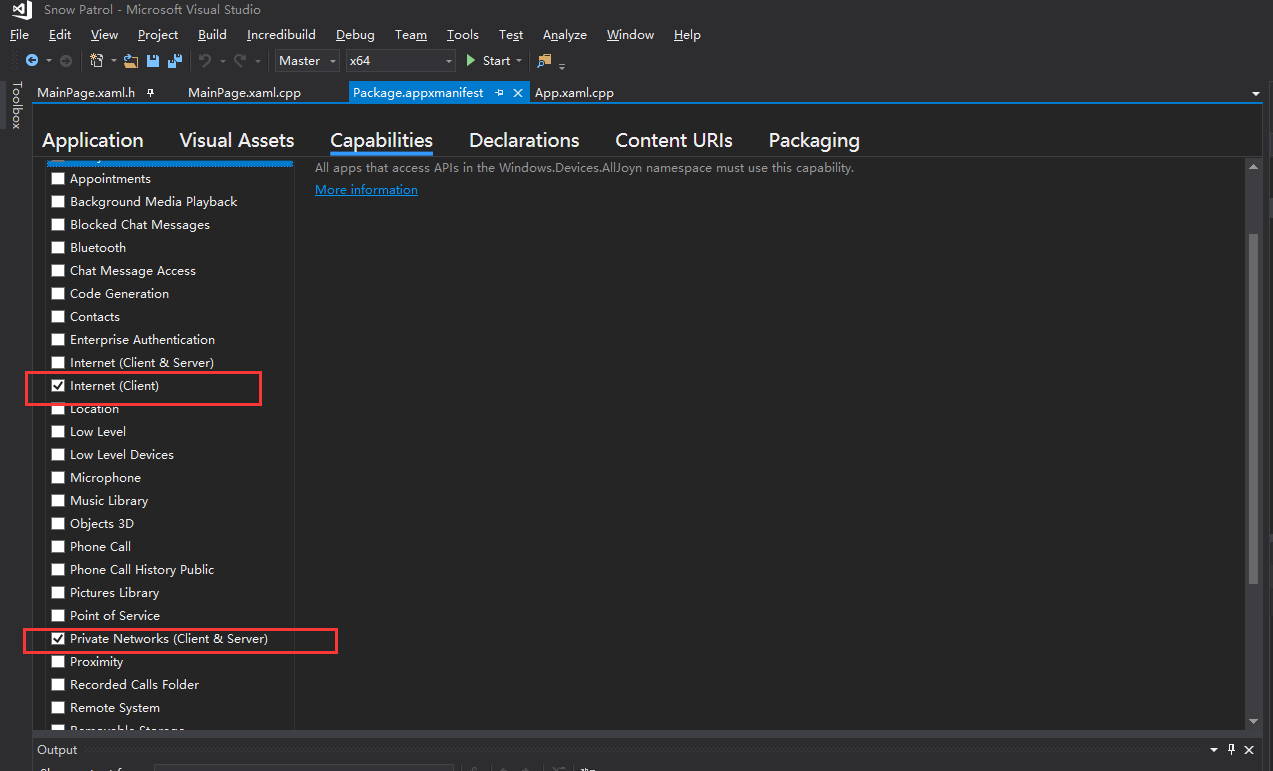

Double-click to open Package.appxmanifest, click on "Capabilities":
Referencing the SDK
Click here to download the SDK

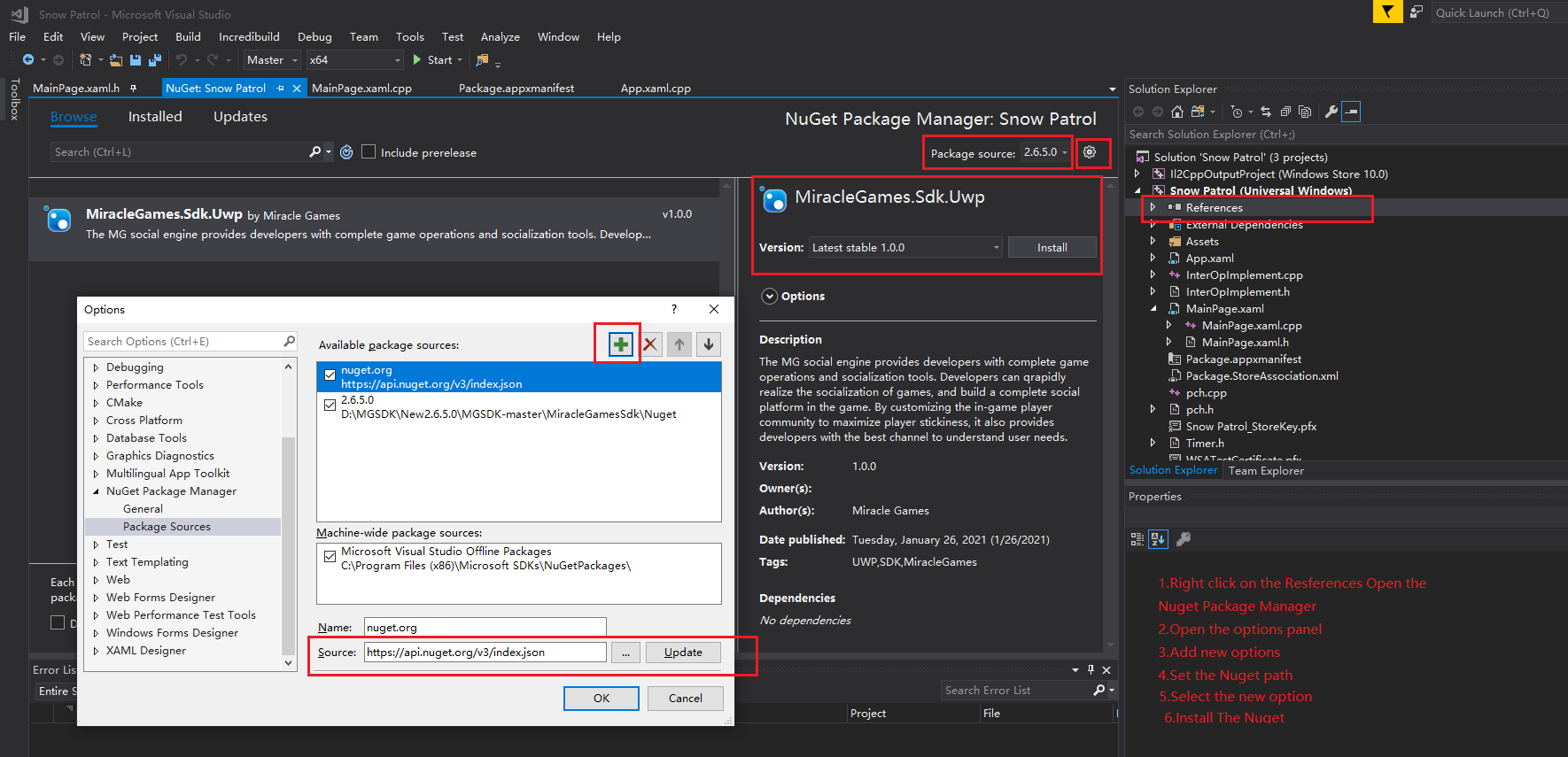

Introduce the MG Ads UWP SDK file into the project:
UWP Project Configuration

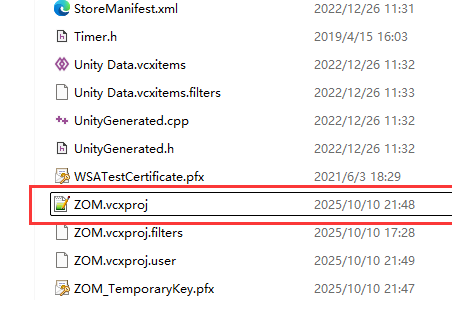

After NuGet package installation is complete, close the UWP project and locate its configuration file (.vcxproj) for editing.

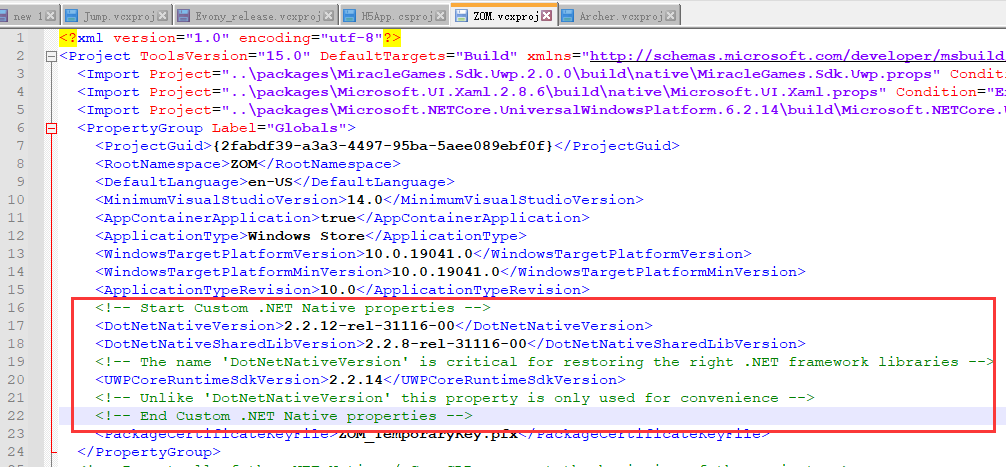

- Add the following settings within the configuration
<DotNetNativeVersion>2.2.12-rel-31116-00</DotNetNativeVersion>
<DotNetNativeSharedLibVersion>2.2.8-rel-31116-00</DotNetNativeSharedLibVersion>
<UWPCoreRuntimeSdkVersion>2.2.14</UWPCoreRuntimeSdkVersion>
| MSBuild Variable | Directory |
|---|---|
| DotNetNativeVersion | %ProgramFiles(x86)%\MicrosoftSDKs\UWPNuGetPackages\Microsoft.Net.Native.Compiler |
| DotNetNativeSharedLibVersion | %ProgramFiles(x86)%\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x64.microsoft.net.native.sharedlibrary |
| UWPCoreRuntimeSdkVersion | %ProgramFiles(x86)%\MicrosoftSDKs\UWPNuGetPackages\Microsoft.Net.UWPCoreRuntimeSdk |

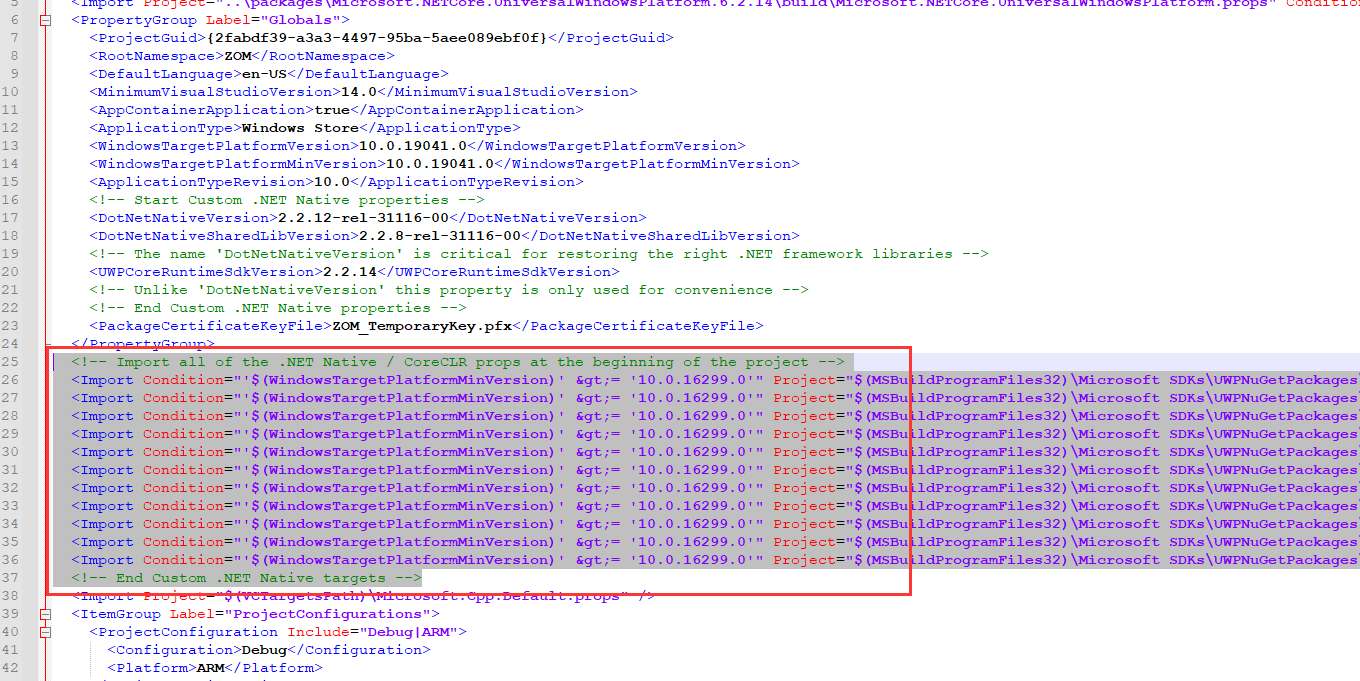

- Add the following configurations outside the configuration section
<!-- Import all of the .NET Native / CoreCLR props at the beginning of the project -->
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\Microsoft.Net.UWPCoreRuntimeSdk\$(UWPCoreRuntimeSdkVersion)\build\Microsoft.Net.UWPCoreRuntimeSdk.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x86.Microsoft.Net.UWPCoreRuntimeSdk\$(UWPCoreRuntimeSdkVersion)\build\runtime.win10-x86.Microsoft.Net.UWPCoreRuntimeSdk.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x64.Microsoft.Net.UWPCoreRuntimeSdk\$(UWPCoreRuntimeSdkVersion)\build\runtime.win10-x64.Microsoft.Net.UWPCoreRuntimeSdk.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-arm.Microsoft.Net.UWPCoreRuntimeSdk\$(UWPCoreRuntimeSdkVersion)\build\runtime.win10-arm.Microsoft.Net.UWPCoreRuntimeSdk.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\Microsoft.Net.Native.Compiler\$(DotNetNativeVersion)\build\Microsoft.Net.Native.Compiler.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x86.Microsoft.Net.Native.Compiler\$(DotNetNativeVersion)\build\runtime.win10-x86.Microsoft.Net.Native.Compiler.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x64.Microsoft.Net.Native.Compiler\$(DotNetNativeVersion)\build\runtime.win10-x64.Microsoft.Net.Native.Compiler.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-arm.Microsoft.Net.Native.Compiler\$(DotNetNativeVersion)\build\runtime.win10-arm.Microsoft.Net.Native.Compiler.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x86.Microsoft.Net.Native.SharedLibrary\$(DotNetNativeSharedLibVersion)\build\runtime.win10-x86.Microsoft.Net.Native.SharedLibrary.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x64.Microsoft.Net.Native.SharedLibrary\$(DotNetNativeSharedLibVersion)\build\runtime.win10-x64.Microsoft.Net.Native.SharedLibrary.props" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-arm.Microsoft.Net.Native.SharedLibrary\$(DotNetNativeSharedLibVersion)\build\runtime.win10-arm.Microsoft.Net.Native.SharedLibrary.props" />
<!-- End Custom .NET Native targets -->

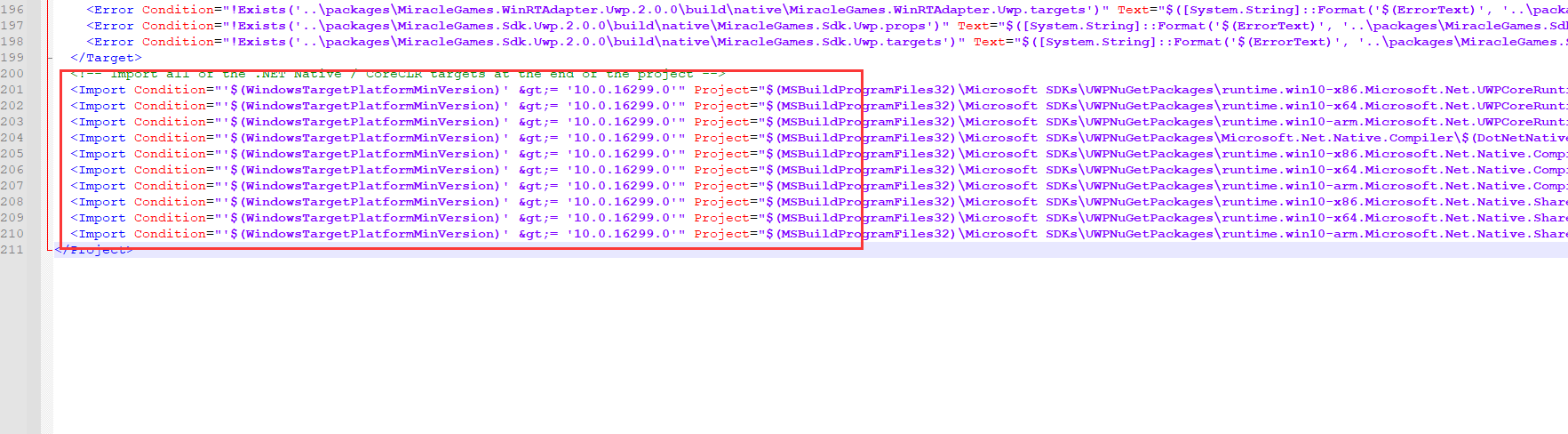

- Add the following at the very bottom of the project
<!-- Import all of the .NET Native / CoreCLR targets at the end of the project -->
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x86.Microsoft.Net.UWPCoreRuntimeSdk\$(UWPCoreRuntimeSdkVersion)\build\runtime.win10-x86.Microsoft.Net.UWPCoreRuntimeSdk.targets" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x64.Microsoft.Net.UWPCoreRuntimeSdk\$(UWPCoreRuntimeSdkVersion)\build\runtime.win10-x64.Microsoft.Net.UWPCoreRuntimeSdk.targets" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-arm.Microsoft.Net.UWPCoreRuntimeSdk\$(UWPCoreRuntimeSdkVersion)\build\runtime.win10-arm.Microsoft.Net.UWPCoreRuntimeSdk.targets" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\Microsoft.Net.Native.Compiler\$(DotNetNativeVersion)\build\Microsoft.Net.Native.Compiler.targets" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x86.Microsoft.Net.Native.Compiler\$(DotNetNativeVersion)\build\runtime.win10-x86.Microsoft.Net.Native.Compiler.targets" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x64.Microsoft.Net.Native.Compiler\$(DotNetNativeVersion)\build\runtime.win10-x64.Microsoft.Net.Native.Compiler.targets" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-arm.Microsoft.Net.Native.Compiler\$(DotNetNativeVersion)\build\runtime.win10-arm.Microsoft.Net.Native.Compiler.targets" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x86.Microsoft.Net.Native.SharedLibrary\$(DotNetNativeSharedLibVersion)\build\runtime.win10-x86.Microsoft.Net.Native.SharedLibrary.targets" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-x64.Microsoft.Net.Native.SharedLibrary\$(DotNetNativeSharedLibVersion)\build\runtime.win10-x64.Microsoft.Net.Native.SharedLibrary.targets" />
<Import Condition="'$(WindowsTargetPlatformMinVersion)' >= '10.0.16299.0'" Project="$(MSBuildProgramFiles32)\Microsoft SDKs\UWPNuGetPackages\runtime.win10-arm.Microsoft.Net.Native.SharedLibrary\$(DotNetNativeSharedLibVersion)\build\runtime.win10-arm.Microsoft.Net.Native.SharedLibrary.targets" />
● After completing the above configuration, restart the project to complete the SDK reference.
